nv.design Interface

In the nv.design module, well design entities are called projects and cases.

A project acts as a folder containing multiple cases, with each case representing a single design version (scenario). A project can consist of up to 10 cases.

Select image to enlarge

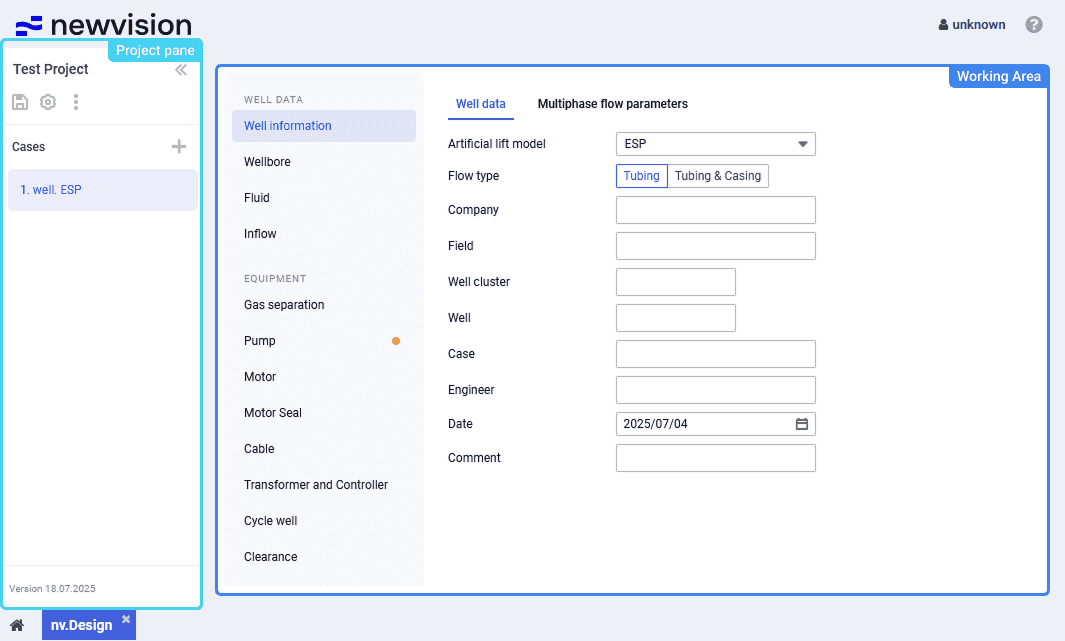

The nv.design module interface consists of the following parts:

• Project pane in the left part of the module.
  For details on creating, importing, and opening projects, see .
• Working area in the central part of the module.

Select image to enlarge

Choose a topic in nv.design Interface.

• Project Pane
• Project Catalog
• Working Area
• Unit Selection
• Viewing Release Notes
